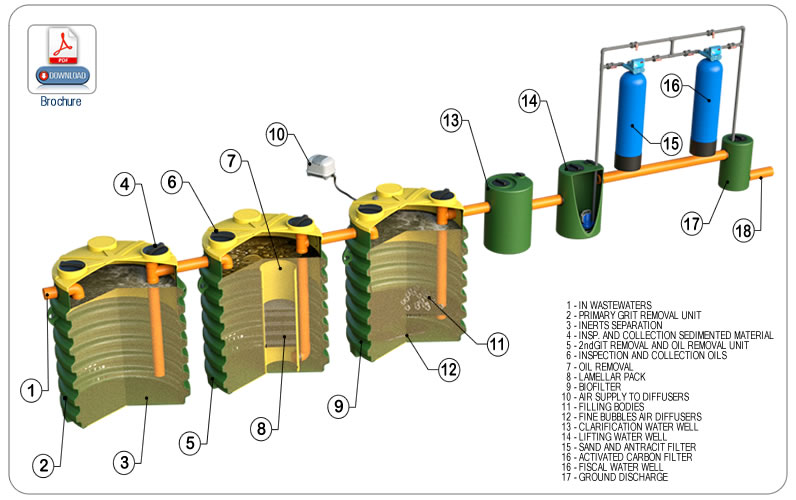

Plant for the treatment of car wash waters composed of a primary grit removal moonoblock unit in rotomoulded linear high density PE, oil removal unit in rotomoulded linear high density PE equipped with coalescence separator of non-emulsified oils and hydrocarbons , biofiltration unit in rotomoulded linear high density PE equipped with membrane diffusers and a filter bed of plastic material, a lifting water well in rotomoulded linear high density PE, a sand/antracit and activated carbon filters, a a fiscal water well in rotomoulded linear high density PE. All units are equipped with inspection threaded manhole and IN / OUT PVC connections suitably sized and variable diameter complete with NBR gaskets.
CAR WASH WATER TREATMENT PLANT WITH GROUND DISCHARGE | |||||
MODEL | PLANT CAPACITY | TOTAL USEFUL VOLUME (lt) |
|||
---|---|---|---|---|---|
cars/gg (n) |
cars/h (n) |
Qmax (lt/gg) |
Qmax (lt/h) |
||
ITAA09 | 10/20 | 4 | 160 | 1600 | 3500 |
ITAA10 | 20/30 | 8 | 320 | 3200 | 5400 |
ITAA11 | 30/50 | 12 | 480 | 4800 | 7800 |
ITAA12 | 50/80 | 16 | 640 | 6400 | 10800 |

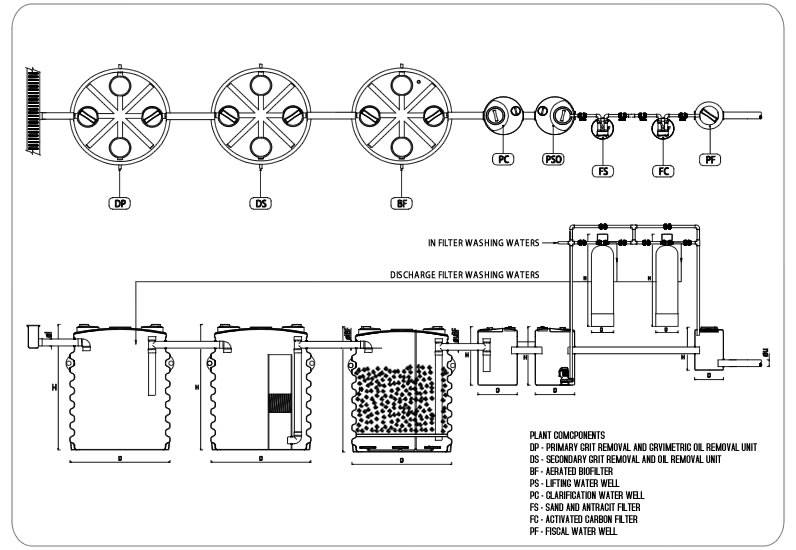

CAR WASH WATER TREATMENT PLANT WITH GROUND DISCHARGE - Models and dimensions | |||||||||||||||||||
MOD. | DP | DS | BF | PS/PC | FS / FC | PF | Conn. | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D (mm) |
H (mm) |
ø man. (mm) | D (mm) |
H (mm) |
ø man. (mm) | D (mm) |
H (mm) |
ø man. (mm) | D (mm) |
H (mm) |
ø man. (mm) | D (mm) |
H (mm) |
øi/o (mm) |
D (mm) |
H (mm) |
ø man. (mm) | øi/o (mm) | |
ITAA09 | 1900x708 | 1630 | 355/455 | 1900x708 | 1630 | 355/455 | 1900x708 | 1630 | 355/455 | 630 | 970 | 455 | 355 | 1580 | 32 | 430 | 430 | 355 | 110 |
ITAA10 | 1900x708 | 2140 | 355/455 | 1900x708 | 2140 | 355/455 | 1900x708 | 2140 | 355/455 | 630 | 970 | 455 | 355 | 1580 | 32 | 580 | 660 | 355 | 110 |
ITAA11 | 1800 | 1910 | 400 | 1900x708 | 2140 | 355/455 | 1900x708 | 2140 | 355/455 | 630 | 970 | 455 | 355 | 1580 | 32 | 580 | 660 | 355 | 125 |
ITAA12 | 1800 | 1910 | 400 | 1800 | 1910 | 400 | 1900x708 | 2140 | 355/455 | 630 | 970 | 455 | 355 | 1580 | 32 | 580 | 660 | 355 | 125 |
