CONSTANT FLOW ACTIVATED SLUDGE PLANTS

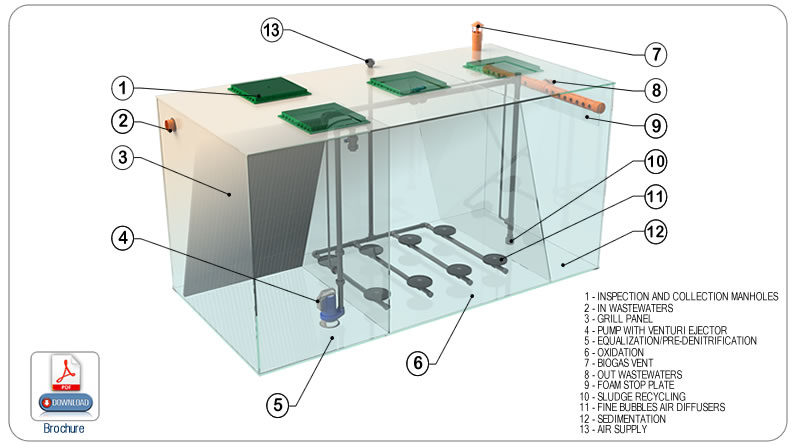

Monobloc activated sludge plant realized in polypropylene, fully recyclable material, of extruded sheets thermowelded with continuous wire and carry suitably reinforced to withstand the pressures siltation and ensure walkability. It consists of three compartments (equaliztion / denitrification, oxidation and sedimentation with sludge recirculation) with manholes for inspection and sludge removal. All manufactured articles have inlet and outlet pipes suitably dimensioned, equipped with suitable double lip gaskets and biogas vent.

MODEL	EQUIVALENT INHABITANTS				VOLUMES (cbm)				nr. diff.	POWER(kW)		DIMENSIONS
CONSTANT FLOW ACTIVATED SLUDGE PLANT
	high load		low load		VOLUMES (cbm)					POWER(kW)		DIMENSIONS
	superf. water drain	ground drain	superf. water drain	ground drain	equal. vol.	oxid. vol.	sedim. vol.	total vol.		air blow.	pump	H (cm)	W (cm)	L (cm)	Hin (cm)	Hout (cm)	øin (mm)	øout (mm)
FAPC8	25	20	30	25	2,2	4,3	0,9	8	6	0,3	0,37	200	100	400	185	175	160	160
FAPC12	40	30	50	40	3,9	5,3	1,3	12	8	0,3	0,37	200	150	400	185	175	160	160
FAPC16	60	40	70	60	4,6	7,5	2,3	16	12	1,1	0,37	200	200	400	185	175	160	160
FAPC24	80	60	100	80	6,9	11,3	2,8	24	18	1,5	0,37	200	200	600	185	175	160	160
FAPC32	100	80	140	100	8,3	16	3,7	32	24	2,2	0,55	200	200	800	185	175	160	160
FAPC40	150	120	180	150	10	20,5	5	40	30	2,2	0,55	200	200	1000	185	175	160	160
FAPC48	180	140	210	180	12	24	6	48	33	2,6	0,55	200	200	1200	185	175	160	160
FAPC58	200	160	250	200	13,5	30	7	58	41	2,6	0,55	200	240	1200	185	175	200	200
FAPC69	250	200	300	250	16	36	8,5	69	44	3	0,75	240	200	1200	220	210	200	200
FAPC78	320	240	400	320	18	42	10	78	52	3	1,1	240	240	1360	220	210	200	200
PARAMETERS OF PROJECT ADOPTED: - hydro allocation per capita: 200lt/giorno - BOD5 per capita: 60gr/giorno - Period of wastewater production : 16h - Oxygen required factor: 2.4 kg BOD5 O2/Kg demolished
