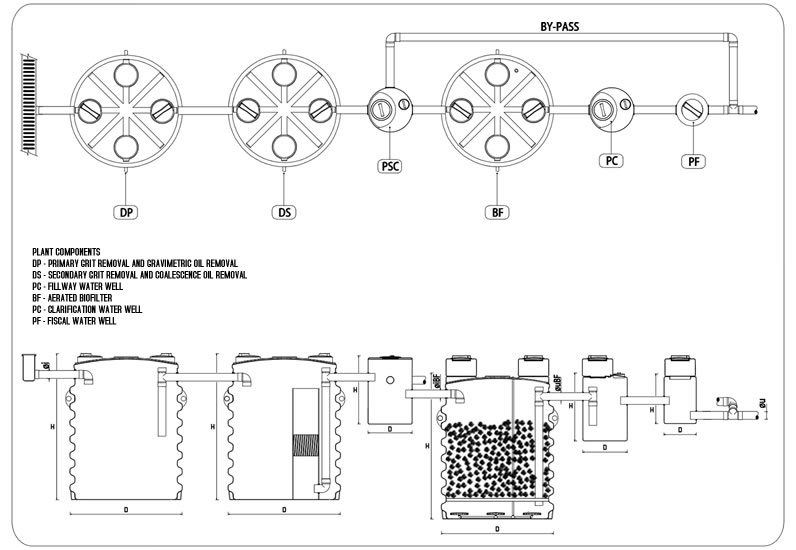

Plant for the continuous treatment of water metoric and car wash composed of a primary grit removal monoblock unit in PE rotomoulded linear high density equipped with IN / OUT PVC connections and NBR gaskets of variable diameter, oil removal monoblock unit in PE linear high density rotomoulded equipped with coalescence separator and non-emulsified oils and hydrocarbons and in / out PVC connections with NBR gaskets of varying diameter, a water well floodway linear rotomoulded monoblock high density polyethylene equipped with No. 3 PVC connections, NBR gasket of variable diameter, respectively for the input, output, and the connection to the by-pass, a biofiltration unit in linear PE rotomoulded equipped with membrane diffusers and a filter bed of plastic material, clarification water well and fiscal water well monobloc rotational molded high density linear PE with IN / OUT pVC connetions and NBR gaskets of varying diameter. All units are equipped with appropriate threaded inspection manhole.
CONTINUOUS TREATMENT OF METEORIC AND CAR WASH WATERS - PUBLIC SEWAGE DRAIN- Volumes | |||||||||
MODEL | PLANT POTENTIALITY | TOTAL USEFUL VOLUME (lt) |
|||||||
---|---|---|---|---|---|---|---|---|---|
Max square surface (sq.m) hdt = 3' * |
Cars/gg (n) |
Cars/h (n) |
Max flow (lt/s)* |
Max square surface (sq.m) hdt = 4'** |
Cars/gg (n) |
Cars/h (n) |
Max flow (lt/s)** |
||
TCAMA1 | 640 | 10 | 2 | 12,4 | 480 | 5 | 1 | 9,3 | 3600 |
TCAMA2 | 820 | 10 | 2 | 15,9 | 620 | 5 | 1 | 12 | 4250 |
TCAMA3 | 1000 | 15 | 2 | 19,4 | 750 | 7 | 1 | 14,5 | 4900 |
TCAMA4 | 1300 | 20 | 2 | 25,2 | 1000 | 10 | 1 | 19,4 | 6200 |
TCAMA5 | 1700 | 30 | 3 | 33 | 1300 | 15 | 2 | 25,2 | 8000 |
TCAMA6 | 2000 | 30 | 3 | 39 | 1550 | 15 | 2 | 30 | 9400 |
TCAMA7 | 2400 | 30 | 3 | 46 | 1800 | 15 | 2 | 35 | 10500 |
TCAMA8 | 2700 | 30 | 3 | 52 | 2000 | 15 | 2 | 39 | 11500 |
- The square surface is calculated by taking the height of rain of up to 70mm/hx sq.m. |
CONTINUOUS TREATMENT OF METEORIC AND CAR WASH WATERS - Models and dimensions | ||||||||||||||||||
Model | DP | DS | BF | PSC/PC | PF | Fittings | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D (mm) |
H (mm) |
Extension |
D (mm) |
H (mm) |
Extension | D (mm) |
H (mm) |
Extension | D (mm) |
H (mm) |
Prol. | D (mm) |
H (mm) |
Extension. | øi (mm) | øu (mm) | øi/uBF (mm) | |
TCAM1 | 1900x708 | 1630 | pp35/pp45 | 1900x708 | 1630 | pp35/pp45 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 430 | 430 | pp35 | 110 | 110 | 110 |
TCAM2 | 1900x708 | 2140 | pp35/pp45 | 1900x708 | 2140 | pp35/pp45 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 430 | 430 | pp35 | 110 | 110 | 110 |
TCAM3 | 1900x708 | 2140 | pp35/pp45 | 1900x708 | 2140 | pp35/pp45 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 430 | 430 | pp35 | 110 | 110 | 110 |
TCAM4 | 1800 | 1700 | pp40 | 1800 | 1700 | pp40 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 580 | 660 | pp35 | 125 | 125 | 110 |
TCAM5 | 1800 | 1910 | pp40 | 1800 | 1910 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 580 | 660 | pp35 | 125 | 125 | 110 |
TCAM6 | 1800 | 1700 | pp40 | 1800 | 1700 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 580 | 660 | pp35 | 160 | 160 | 110 |
TCAM7 | 1800 | 1910 | pp40 | 1800 | 1910 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 580 | 660 | pp35 | 160 | 160 | 110 |
TCAM8 | 1800 | 2120 | pp40 | 1800 | 2120 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 580 | 660 | pp35 | 160 | 160 | 110 |
