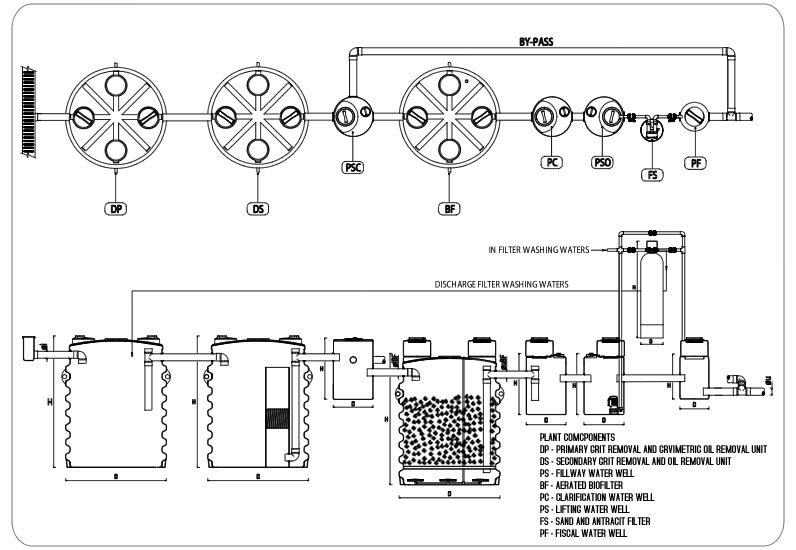

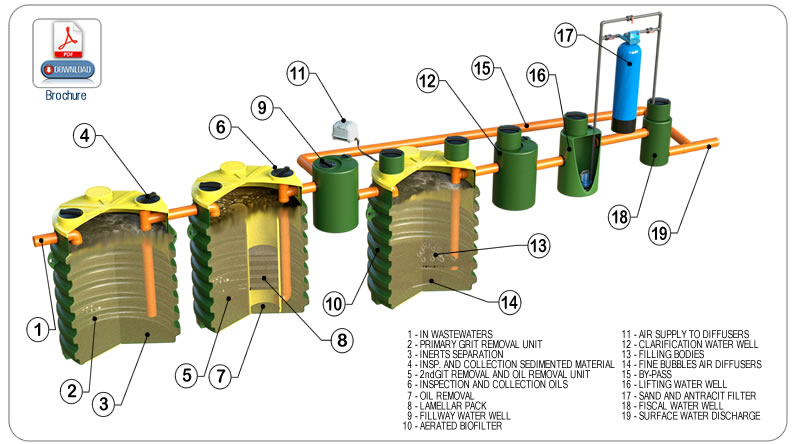

Plant for the continuous treatment of water metoric and car wash composed of a primary grit removal monoblock unit in PE rotomoulded linear high density equipped with IN / OUT PVC connections and NBR gaskets of variable diameter, oil removal monoblock unit in PE linear high density rotomoulded equipped with coalescence separator and non-emulsified oils and hydrocarbons and in / out PVC connections with NBR gaskets of varying diameter, a water well floodway linear rotomoulded monoblock high density polyethylene equipped with No. 3 PVC connections, NBR gasket of variable diameter, respectively for the input, output, and the connection to the by-pass, a biofiltration unit in linear PE rotomoulded equipped with membrane diffusers and a filter bed of plastic material, clarification water well and fiscal water well monobloc rotational molded high density linear PE with IN / OUT pVC connetions and NBR gaskets of varying diameter, a sand/antracit automatic filters. All units are equipped with appropriate threaded inspection manhole. .
CONTINUOUS TREATMENT OF METEORIC AND CAR WASH WATERS - SURFACE WATERS DISCHARGE- Volumes | |||||
MODEL | Superficie Max piazzale (mq) tdi = 4' * |
Auto/gg (n) |
Auto/h (n.max) |
Portata massima (lt/s)** |
VOLUME UTILE TOTALE (lt) |
---|---|---|---|---|---|
TCAMA9 | 480 | 10/15 | 2 | 9,3 | 3600 |
TCAMA10 | 620 | 13/18 | 2 | 12 | 4250 |
TCAMA11 | 750 | 15/20 | 3 | 14,5 | 4900 |
TCAMA12 | 1000 | 20/25 | 4 | 19,4 | 6200 |
TCAMA13 | 1300 | 25/30 | 6 | 25,2 | 8000 |
TCAMA14 | 1550 | 30/40 | 7 | 30 | 9400 |
TCAMA15 | 1800 | 40/50 | 8 | 35 | 10500 |
TCAMA16 | 2000 | 50/60 | 10 | 39 | 11500 |
- La superficie del piazzale è calcolata considerandoun'altezza di pioggia massima pari a 70mm/h x mq |
CONTINUOUS TREATMENT OF METEORIC AND CAR WASH WATERS - SURFACE WATERS DISCHARGE- Volumes | ||||||||||||||||||||
Modello | DP/DS | DS | BF | PSC/PSO/PC | FS | PF | Attacchi | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D (mm) |
H (mm) |
Prolunga |
H (mm) |
Prolunga | D (mm) |
H (mm) |
Prolunga | D (mm) |
H (mm) |
Prol. | D (mm) |
H (mm) |
Prol. | D (mm) |
H (mm) |
Prol. | øi (mm) | øu (mm) | øi/uBF (mm) | |
TCAM1 | 1900x708 | 1630 | pp35/pp45 | 1630 | pp35/pp45 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 430 | 430 | pp35 | 110 | 110 | 110 |
TCAM2 | 1900x708 | 2140 | pp35/pp45 | 2140 | pp35/pp45 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 430 | 430 | pp35 | 110 | 110 | 110 |
TCAM3 | 1900x708 | 2140 | pp35/pp45 | 2140 | pp35/pp45 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 430 | 430 | pp35 | 110 | 110 | 110 |
TCAM4 | 1800 | 1700 | pp40 | 1700 | pp40 | 1900x708 | 1630 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 580 | 660 | pp35 | 125 | 125 | 110 |
TCAM5 | 1800 | 1910 | pp40 | 1910 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 580 | 660 | pp35 | 125 | 125 | 110 |
TCAM6 | 1800 | 1700 | pp40 | 1700 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 580 | 660 | pp35 | 160 | 160 | 110 |
TCAM7 | 1800 | 1910 | pp40 | 1910 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 580 | 660 | pp35 | 160 | 160 | 110 |
TCAM8 | 1800 | 2120 | pp40 | 2120 | pp40 | 1900x708 | 2140 | pp35/pp45 | 630 | 970 | pp35 | 335 | 1580 | 32 | 580 | 660 | pp35 | 160 | 160 | 110 |
