MODULAR ACTIVATED SLUDGE PLANTS

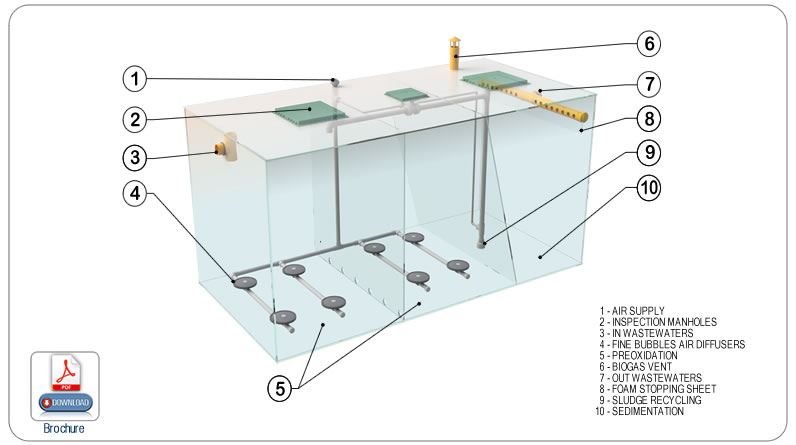

ACTIVATED SLUDGE BIOLOGICAL DEPURATION UNIT
Activated sludge treatment unit realized of polypropylene (PP), fully recyclable material, with extruded thermowelded sheet with continuous wire and carry properly reinforced to withstand the siltation pressures and ensure walkability. All manufactured articles have inlet and outlet pipes suitably dimensioned, equipped with suitable double lip gaskets and biogas vent.
| MODULAR UNIT OF ACTIVATED SLUDGE BIOLOGICAL DEPURATION |
 |
|||||||||||||
| MODEL | EQUIV. INHAB. | VOLUMES |
Nr. DIFF. | AIR BLOW. POWER (kW) | EQ MODULE TO COMBINE | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| oxid. (cbm) | sedim. (cbm) | residential | non residential | H (cm) |
W (cm) |
L (cm) |
Hi (cm) |
Ho (cm) |
øi (mm) |
øo (mm) |
||||
| FA12000 | 60 | 8,8 | 1,7 | 10 | 1,1 | EQ4500 | EQ8000 | 200 | 150 | 400 | 185 | 175 | 160 | 160 |
| FA16000 | 80 | 11,7 | 2,3 | 15 | 1,5 | EQ6000 | EQ12000 | 200 | 200 | 400 | 185 | 175 | 160 | 160 |
| FA24000 | 120 | 17,8 | 3,2 | 21 | 2,2 | EQ8000 | EQ16000 | 200 | 200 | 600 | 185 | 175 | 160 | 160 |
| FA32000 | 160 | 23,5 | 4,5 | 27 | 2,6 | EQ12000 | EQ24000 | 200 | 200 | 800 | 185 | 175 | 160 | 160 |
| FA40000 | 200 | 29,5 | 5,5 | 33 | 2,6 | EQ12000 | EQ24000 | 200 | 200 | 1000 | 185 | 175 | 160 | 160 |
| FA48000 | 250 | 35 | 7 | 39 | 3 | EQ16000 | EQ32000 | 200 | 200 | 1200 | 185 | 175 | 160 | 160 |
| FA58000 | 300 | 42 | 8,4 | 52 | 4 | EQ24000 | EQ32000 | 200 | 240 | 1200 | 185 | 175 | 160 | 160 |
Drain in superficial waters or public sewer - att..5 table 3 |
||||||||||||||
| MODULAR UNIT OF ACTIVATED SLUDGE BIOLOGICAL DEPURATION | |
|||||||||||||
| MODEL | EQUIV. INHAB. | VOLUMES |
Nr. DIFF. | AIR BLOW. POWER (kW) | EQ MODULE TO COMBINE | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| oxid. (cbm) | sedim. (cbm) | residential | non residential | H (cm) |
W (cm) |
L (cm) |
Hi (cm) |
Ho (cm) |
øi (mm) |
øo (mm) |
||||
| FA12000 | 60 | 8,8 | 1,7 | 10 | 1,1 | EQ6000 | EQ8000 | 200 | 150 | 400 | 185 | 175 | 160 | 160 |
| FA16000 | 80 | 11,7 | 2,3 | 15 | 1,5 | EQ8000 | EQ12000 | 200 | 200 | 400 | 185 | 175 | 160 | 160 |
| FA24000 | 120 | 17,8 | 3,2 | 21 | 2,2 | EQ12000 | EQ16000 | 200 | 200 | 600 | 185 | 175 | 160 | 160 |
| FA32000 | 160 | 23,5 | 4,5 | 27 | 2,6 | EQ16000 | EQ24000 | 200 | 200 | 800 | 185 | 175 | 160 | 160 |
| FA40000 | 200 | 29,5 | 5,5 | 33 | 2,6 | EQ16000 | EQ32000 | 200 | 200 | 1000 | 185 | 175 | 160 | 160 |
| FA48000 | 250 | 35 | 7 | 39 | 3 | EQ24000 | EQ40000 | 200 | 200 | 1200 | 185 | 175 | 160 | 160 |
| FA58000 | 300 | 42 | 8,4 | 52 | 4 | EQ32000 | EQ40000 | 200 | 240 | 1200 | 185 | 175 | 160 | 160 |
Ground drain - att.. 5 table 4 |
||||||||||||||
.
