postheadericon PHYTODEPURATION AND EVAPOTRANSPIRATION

A SUBMERGED HORIZONTAL FLOW (FFSO)

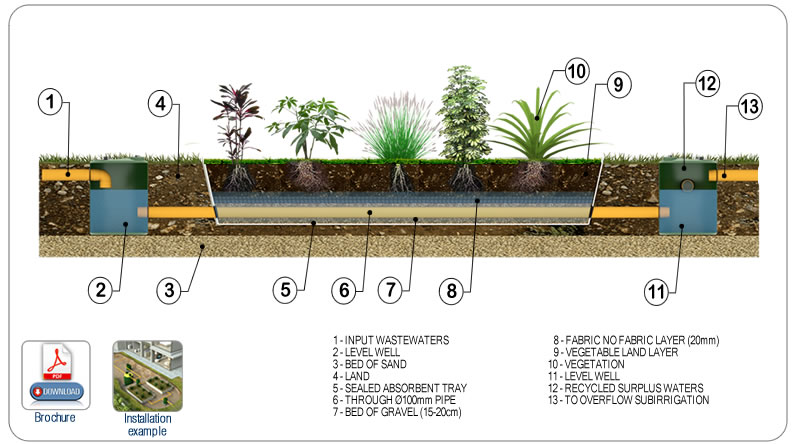

Depur Systems trays for submerged horizontal phytodepuration (VFSO) are composed of watertight tanks realized in sheets of PE or PP-HD extruSION welded with wire of the same material, accompanied by drilled PVC piping d1 1 0 and suitable lip seals on the bottom of the same, a surface area equal to 9sqm approx. (VFSO1) or approx 20sqm. (VFSO2), and both 70cm tall approx. . Upstream and downstream of the trays, are present wells in linear PE rotational molding process which allow both the inspection and the filling level of the trays.

USE
For the treatment of wastewater from any civil, industrial, mixed meteoric runoff squaresi. Sites of application: single homes, apartments, campsites, restaurants, hotels, cottages, bars, offices, shopping centers, industrial, service stations, hospitals, railway stations, airports.



MODELS AND DIMENSIONS
Model L
(mm)		 L1
(mm)		 P
(mm)		 P1
(mm)		 H
(mm)
VFSO1 3700 4000 2000 2300 665
VFSO2 8000 8390 2000 2390 980



TRAY MOD. VFSO1- Surface planting 9sqm   TRAY MOD. VFSO2- Surface planting 20sqm
TAB. A - SURFACE WATER DRAINAGE OR IN SUB-IRRIGATION
EQ. IN. 3 6 9 12 15 18 21 24 27 30
VFSO1 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 3sqm / EQ. INHABITANTS.

TAB. A - SURFACE WATER DRAINAGE OR IN SUB-IRRIGATION
EQ. IN 6 12 18 24 30 36 42 48 54 60
VFSO2 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 3sqm / EQ. INHABITANTS.
TAB. B - TREATMENT OF TERTIARY REFINEMENT
EQ. IN. 9 18 27 36 45 54 63 72 81 90
VFSO1 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 1sqm / EQ. INHABITANTS.

TAB. B - TREATMENT OF TERTIARY REFINEMENT
EQ. IN 20 40 60 80 100 120 140 160 180 200
VFSO2 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 1sqm / EQ. INHABITANTS.
TAB. C - EMILIA ROMAGNA not seasonal applications
EQ. IN 3 6 9 12 15 18 21 24 27 30
VFSO1 2 4 5 7 9 10 12 14 15 17
For the dimensioning is considered an available surface equal to 5sqm / EQ. INHABITANTS.

TAB. C - EMILIA ROMAGNA not seasonal applications
EQ. IN 6 12 18 24 30 36 42 48 54 60
VFSO2 2 3 5 6 8 9 11 13 14 15
For the dimensioning is considered an available surface equal to 5sqm / EQ. INHABITANTS.
TAB. D - EMILIA ROMAGNA - Seasonal applications (hotels camping, etc..)
EQ. IN 3 6 9 12 15 18 21 24 27 30
VFSO1 2 3 4 5 6 7 8 9 11 12
For the dimensioning is considered an available surface equal to 3.5sqm / EQ. INHABITANTS.

TAB. D - EMILIA ROMAGNA - Seasonal applications (hotels camping, etc..)
EQ. IN 6 12 18 24 30 36 42 48 54 60
VFSO1 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 3.5sqm / EQ. INHABITANTS.

postheadericon PHYTODEPURATION AND EVAPOTRANSPIRATION

A SUB-SURFACE VERTICAL FLOW (FSSV)

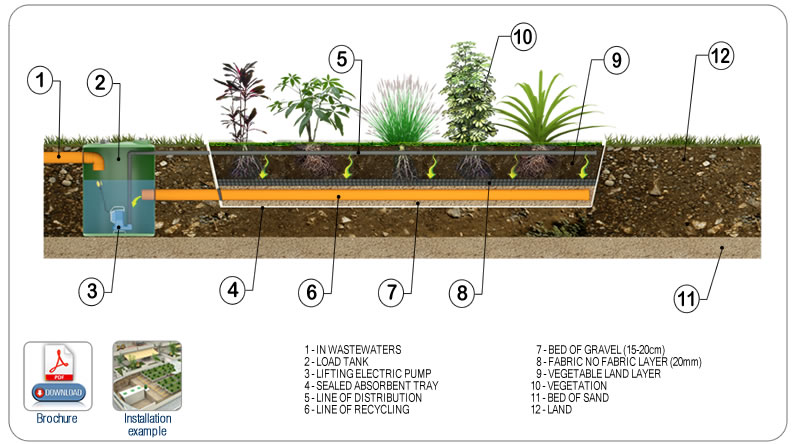

Depur Systems trays for submerged horizontal phytodepuration (VFSO) are composed of watertight tanks realized in sheets of PE or PP-HD extruSION welded with wire of the same material, accompanied by drilled PVC piping d1 1 0 and suitable lip seals on the bottom of the same, a surface area equal to 9sqm approx. (VFSO1) or approx 20sqm. (VFSO2), and both 100cm height approx.. Upstream of the trays, there is a pumping station equipped with one or more submersible motor pumps, which provide fill trays on the surface. Are also present wells in linear PE rotational molding process, which allow the inspection and the return to the feeding station of the water-access output from the trays.

IMPIEGO
Per il trattamento di reflui di tipo civile, industriale, misto, meteorici di dilavamento paizzali. Siti di applicazione: singole abitazioni, residence, campeggi, ristoranti, alberghi, agriturismi, bar, uffici, centri commerciali, attività industriali, stazioni di servizio, ospedali, stazioni ferroviarie, aeroporti.



MODELS AND DIMENSIONS
Model L
(mm)		 L1
(mm)		 P
(mm)		 P1
(mm)		 H
(mm)
VSSV1 3700 4000 2000 2300 665
VSSV2 8000 8390 2000 2390 980



TRAY MOD. VFSO1- Surface planting 9sqm   TRAY MOD. VFSO2- Surface planting 20sqm
TAB. A - SURFACE WATER DRAINAGE OR IN SUB-IRRIGATION
EQ. IN. 3 6 9 12 15 18 21 24 27 30
VSSV1 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 3sqm / EQ. INHABITANTS.

TAB. A - SURFACE WATER DRAINAGE OR IN SUB-IRRIGATION
EQ. IN 6 12 18 24 30 36 42 48 54 60
VSSV2 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 3sqm / EQ. INHABITANTS.
TAB. B - TREATMENT OF TERTIARY REFINEMENT
EQ. IN. 9 18 27 36 45 54 63 72 81 90
VSSV1 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 1sqm / EQ. INHABITANTS.

TAB. B - TREATMENT OF TERTIARY REFINEMENT
EQ. IN 20 40 60 80 100 120 140 160 180 200
VSSV2 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 1sqm / EQ. INHABITANTS.
TAB. C - EMILIA ROMAGNA not seasonal applications
EQ. IN 3 6 9 12 15 18 21 24 27 30
VSSV1 2 4 5 7 9 10 12 14 15 17
For the dimensioning is considered an available surface equal to 5sqm / EQ. INHABITANTS.

TAB. C - EMILIA ROMAGNA not seasonal applications
EQ. IN 6 12 18 24 30 36 42 48 54 60
VSSV2 2 3 5 6 8 9 11 13 14 15
For the dimensioning is considered an available surface equal to 5sqm / EQ. INHABITANTS.
TAB. D - EMILIA ROMAGNA - Seasonal applications (hotels camping, etc..)
EQ. IN 3 6 9 12 15 18 21 24 27 30
VSSV1 2 3 4 5 6 7 8 9 11 12
For the dimensioning is considered an available surface equal to 3.5sqm / EQ. INHABITANTS.

TAB. D - EMILIA ROMAGNA - Seasonal applications (hotels camping, etc..)
EQ. IN 6 12 18 24 30 36 42 48 54 60
VSSV2 1 2 3 4 5 6 7 8 9 10
For the dimensioning is considered an available surface equal to 3.5sqm / EQ. INHABITANTS.
