The manometers are measuring instruments for pressure. There are two types of pressure manometers suitable for different uses and precisely:
- Pressure dry (fillable)
- Manometers with glycerine.
The latter have the crate filled with glycerin, in order to damp the oscillations of the needle and limit the wear of moving parts, thus making these instruments suitable for use in the presence of vibrations and improving the resistance to pressure buttons.

Sfoglia brochure

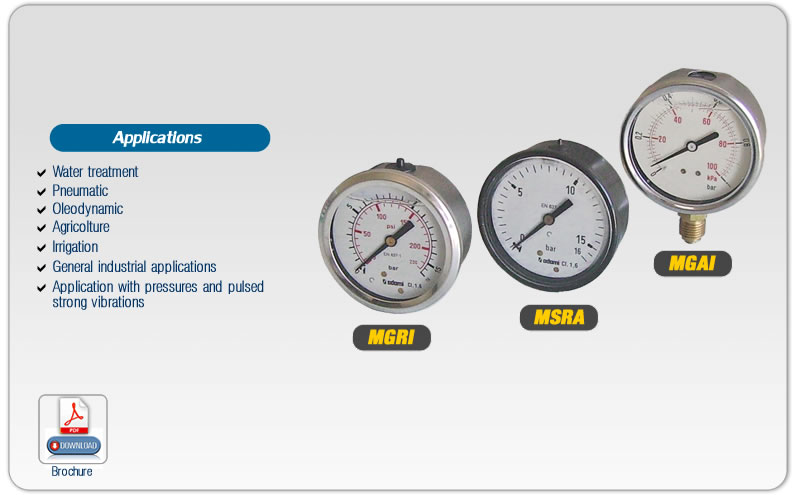

MANOMETER mod. MSRA
Type dry
Case DN63 in black ABS
Quadrant transparent plastic
Connection brass ¾" radial
Precision Cl 1.6
Connection size R¾"
Monometric element tube spring in copper alloy
Hole 0,8mm
Clockwork  brass
Protection degree IP31
Scale * 0-6 bar/psi, 0-16 bar/psi, 0-25 bar/psi
* Other scales on request
MANOMETER mod. MGRI
Type in glycerin (glycerol 98%)
Case DN63 stainless steel
Quadrant transparent plastic
Connection brass ¾" radial
Precision Cl 1.6
Connection size R¾"
Monometric element tube spring in copper alloy
Hole 0,8mm
Clockwork  brass
Protection degree IP31
Scale * 0-6 bar/psi, 0-16 bar/psi, 0-25 bar/psi
* Other scales on request
MANOMETER mod. MGAI
Type in glycerin (glycerol 98%)
Case DN63 stainless steel
Quadrant transparent plastic
Connection brass ¾" radial
Precision Cl 1.6
Connection size R¾"
Monometric element tube spring in copper alloy
Hole 0,8mm
Clockwork  brass
Protection degree IP31
Scale * 0-6 bar/psi, 0-16 bar/psi, 0-25 bar/psi
* Other scales on request
