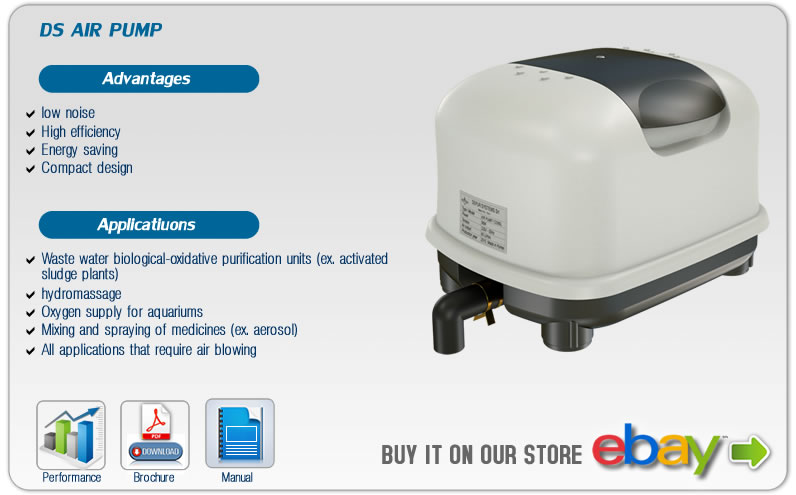

LINEAR MEMBRANE AIR PUMPS
The membrane compressors are characterized by a compact design and combine high efficiency and low energy consumption. All models have a system that prevents overheating and are in conformity to EN 60204-01 normative
 |
|
|||||||||||||||||||||||||||||||||
| TECHNICAL FEATURES | ||||||
| MODEL | DS20L |
DS40L |
DS60L | DS80L | DS120L | DS160L |
|---|---|---|---|---|---|---|
| VOLTAGE (AC) | 230 | 230 | 230 | 230 | 230 | 230 |
| FREQUENCY (Hz) | 50 | 50 | 50 | 50 | 50 | 50 |
| FLOW (lt(min) | 20 | 40 | 60 | 80 | 120 | 160 |
| OUTLET PRESSURE (Kg/cm2) | 0,39 | 0,39 | 0,40 | 0,50 | 0,50 | 0,50 |
| ENERGY COSUMPTION (W) | 20 | 37 | 56 | 78 | 100 | 145 |
| INLET DIAMETER (mm) | 17 | 17 | 17 | 17 | 25 | 25 |
| WEIGHT (Kg) | 1,8 | 4,2 | 4,7 | 4,9 | 7,3 | 7,6 |
