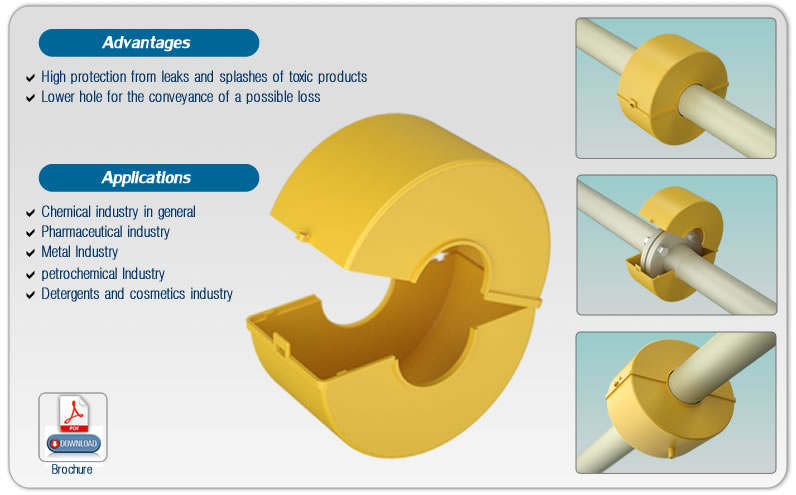

With the growing awareness of the importance of safety at work and environmental protection, security guards are a natural consequence of the processes, hazardous or toxic. In fact the couplings flange piping systems represent a source of danger particularly high, especially for pipes used for the transport of chemicals, including toxic fluids, fuels, caustics, acids, solvents and alkaline solutions, or products whose temperature is extremely high or low, as heat transfer oils, liquid gas or steam. In the case of a rupture of a seal unpredictable, these hazardous fluids are sprayed from the coupling flange with a kinetic energy high and dispersed in a large radius around. The harmful consequences of an event of this type are reflected in costs for considerable damage to machinery and plant parts neighbors, but also in damage to the health and safety of the worker (your most valuable asset). Practical tests have shown that the danger area can reach a diameter from 30 to 40 meters, depending on the pressure and the position of the coupling flange. The anti-spray meet the standards set by regulatory agencies such as OSHA (European Agency for Safety at work) and are made ​​of PP (polypropylene) material durable and weather resistant to chemicals and UV.



MODELS AND DIMENSIONS
MODEL D
(mm)
DN
Ø De
(mm)
Di
(mm)
P
(mm)
CF20 20 15 ½" 120 23 90
CF25 25 20 ¾" 120 28 90
CF32 32 25 1" 120 35 90
CF40 40 32 1"¼ 175 42 90
CF50 50 40 1"½ 175 50 90
CF63 63 50 2" 175 63 90
CF75 75 65 2"½ 205 77 112
CF90 90 80 3" 205 93 114
CF110 110 100 4" 226 135 138
CF125 125 125 5" 259 165 138
CF140 140 125 - 259 165 138
CF160 160 150 6" 288 195 170
CF180 180 200 - 345 255 174
CF200 200 200 - 345 255 174
CF225 225 200 8" 345 255 174
CF250 250 250 10" 408 310 195
CF315 315 300 12" 456 350 217
