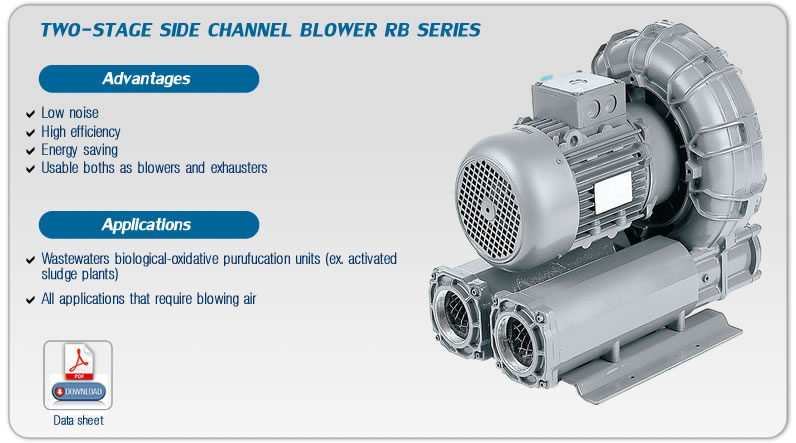

DIMENSIONAL TABLE Model A A' B C D E F G H H' J K L M N O P Q ØR S T ØX RB302 284 316 270 45 205 230 316 135 128 106 111 83 108 75 130 39 G1"¼ 64 10 2.5 88 140 RB402 322 324 315 58 225 255 401 191 154 153 128 95 130 73 151 45 G1"½ 72 12 3 104 174 RB502 372 411 371 60 260 295 465 190 175 144 135 115 155 98 171 48 G2" 83 14 4 116 200 RB602 426 426 410 154 290 326 526 209 197 195 135 140 180 205 192 197 G2" 83 15 4.5 - 240 RB602 466 - 550 180 400 450 675 - - - - 330 550 180 195 97 G3" - 11 4.5 - -



TECHNICAL SPECIFICATIONS
Model	Curve graph (*)	PhasesI	Voltage (V)	Frequency (Hz)	Power (kW)	Rated current (A)	Noise (db)	Weight (kg)
RB302	a	3	200-240 ∆ 345-415Y	50	0.7	.8 ∆/2.2Y	55	14
	b		220-275 ∆ 380-480Y	60	0.83	3.75 ∆/2.15Y	61
	c	1	200-240V	50	0.7	4.5	55	15
	d		200-240V	60	0.83	5.6	61
RB402	a	3	200-240 ∆ 345-415Y	50	1.6	7.5 ∆/4.3 Y	73	24
	b		220-275 ∆ 380-480Y	60	2.05	7.6 ∆/4.4 Y	61
	c		200-240 ∆ 345-415Y	50	2,2	9.7 ∆/5.6 Y	73	27
	d		220-275 ∆ 380-480Y	60	2,55	10.3 ∆/6.0 Y	73
RB502	a	3	200-240 ∆ 345-415Y	50	3,0	12.5 ∆/7.2Y	72	39
	b		200-240 ∆ 345-415Y	60	3,45	12.5 ∆/7.3Y	74
	c		380-415V	50	4.0	10 ∆	72	43
	d		380-415V	60	4.6	10 ∆	74
RB602	a	3	345-415 ∆ 600-720Y	50	4.0	10.0 ∆/5.2 Y	73	54
	b		380-480 ∆ 660-720Y	60	4.8	10.4 ∆/6.0 Y	76
	c		345-415 ∆ 600-720Y	50	5.5	10.4 ∆/6.0 Y	73	66
	d		380-480 ∆ 660-720Y	60	6,3	13.3 ∆/7.7 Y	76
RB802	a	3	400 ∆ 690Y	50	4.0	10.5 ∆/6.1 Y	77	70
	b		460 ∆ 795Y	60	4.8	10.5 ∆/6.1 Y
	c		400 ∆ 690Y	50	5.5	12.5 ∆/7.2 Y	78	75
	d		460 ∆ 795Y	60	6.6	12.5 ∆/7.2 Y
	e		400 ∆ 690Y	50	7.5	18.5 ∆/10.7 Y		87
	f		460 ∆ 795Y	60	9.0	18.5 ∆/10.7 Y
	g		400 ∆ 690Y	50	8.2	22 ∆/12.7 Y	80	95
	h		460 ∆ 795Y	60	11	22 ∆/12.7 Y

(*):for the values ​​of the graphs refer to data sheet
