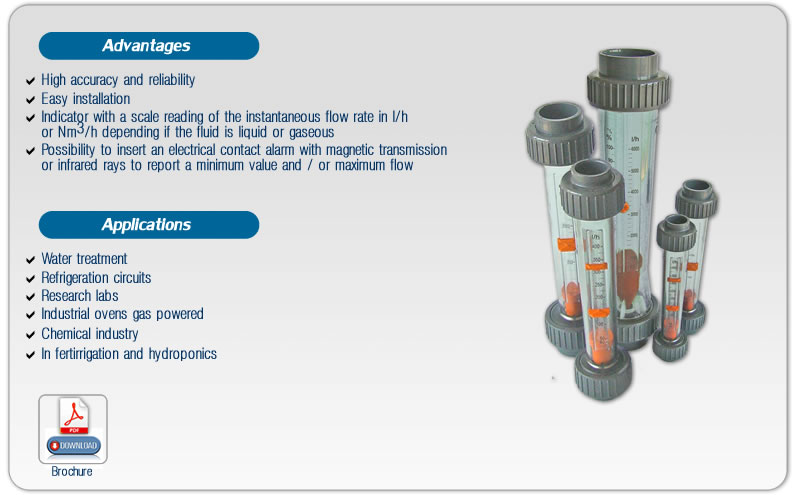

DIRECT READING FLOWMETERS
The direct reading flowmeters are instant flow measuring devices suitable for different types of fluids, such as:
• water
• air
• Liquid chemicals (eg NaOH, HCl)
• gaseous chemicals (es.O2)
The measuring device is constituted by a truncated cone tube-shaped with excellent resistance to temperature and pressure, on which is printed the MIC scale which shows the instantaneous flow rate. The fluid, entering vertically from the bottom upward, pushes the float according to the scale to be controlled. Therefore, the reading of the flow rate is linked to the condition of dynamic equilibrium of the float. The floating, shape and weight studied, can be performed, depending on requirements, in a variety of materials.
• water
• air
• Liquid chemicals (eg NaOH, HCl)
• gaseous chemicals (es.O2)
The measuring device is constituted by a truncated cone tube-shaped with excellent resistance to temperature and pressure, on which is printed the MIC scale which shows the instantaneous flow rate. The fluid, entering vertically from the bottom upward, pushes the float according to the scale to be controlled. Therefore, the reading of the flow rate is linked to the condition of dynamic equilibrium of the float. The floating, shape and weight studied, can be performed, depending on requirements, in a variety of materials.
 |
|
| TECHNICAL DATA - Maximum operating pressure 10 bar (PN10) - Length of the graduated tube 165 to 350mm - Connections in gray PVC-U (PP pocket weld on request) - O-rings in EPDM or FPM |
|
| MEASURES TUBE MATERIAL - U-PVC (polyvinyl chloride) transparent - PA (polyamide) transparent with very low humidity absorption - PSU (polysulfone) transparent - PVDF (polyvinylidene fluoride) opaque |
|
| FLOAT MATERIAL: - PVDF (polyvinylidene fluoride) - PVDF (polyvinylidene fluoride) with magnet - Stainless steel AISI 304 |
|
| STANDARD FLOWMETERS (measures tube in PVC transparent and float in PVDF) | |||||||||
| MODEL | TYPE | FLOW (lt/h) |
d (mm) |
DN (zoll) |
DN |
G | L (mm) |
L1 (mm) |
L2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| FL47500 | DFM165 | 3-24 | 16 | 3/8" | 10 | 3/4" | 199 | 165 | 171 |
| FL47501 | DFM165 | 5-60 | 16 | 3/8" | 10 | 3/4" | 199 | 165 | 171 |
| FL47502 | DFM165 | 10-100 | 16 | 3/8" | 10 | 3/4" | 199 | 165 | 171 |
| FL47503 | DFM165 | 25-250 | 16 | 3/8" | 10 | 3/4" | 199 | 165 | 171 |
| FL47507 | DFM170 | 40-400 | 20 | 1/2" | 15 | 1" | 208 | 170 | 176 |
| FL47509 | DFM185 | 40-400 | 25 | 3/4" | 20 | 1"¼ | 209 | 185 | 191 |
| FL47510 | DFM200 | 60-600 | 25 | 3/4" | 20 | 1"¼ | 229 | 185 | 191 |
| FL47511 | DFM200 | 100-1000 | 25 | 3/4" | 20 | 1"¼ | 229 | 185 | 191 |
| FL47514 | DFM350 | 100-1000 | 32 | 1" | 25 | 1"½ | 229 | 200 | 206 |
| FL47515 | DFM350 | 150-1500 | 32 | 1" | 25 | 1"½ | 250 | 200 | 206 |
| FL46280 | DFM350 | 250-2500 | 40 | 1"¼ | 32 | 2" | 250 | 350 | 356 |
| FL46284 | DFM350 | 200-2000 | 50 | 1"½ | 40 | 2"¼ | 408 | 350 | 356 |
| FL46285 | DFM350 | 300-3000 | 50 | 1"½ | 40 | 2"¼ | 418 | 350 | 356 |
| FL46289 | DFM350 | 400-4000 | 63 | 2" | 50 | 2"¾ | 432 | 350 | 356 |
| FL46290 | DFM350 | 600-6000 | 63 | 2" | 50 | 2"¾ | 432 | 350 | 356 |
| FL46291 | DFM350 | 1000-10000 | 63 | 2" | 50 | 2"¾ | 432 | 350 | 356 |
| FL46295 | DFM350 | 1500-15000 | 75 | 2"½ | 65 | 3"½ | 444 | 350 | 356 |
| FL46296 | DFM350 | 2500-25000 | 75 | 2"½ | 65 | 3"½ | 444 | 350 | 356 |
| FL127865 | DFM350 | 10000-50000 | 75 | 2"½ | 65 | 32½ | 444 | 350 | 356 |
