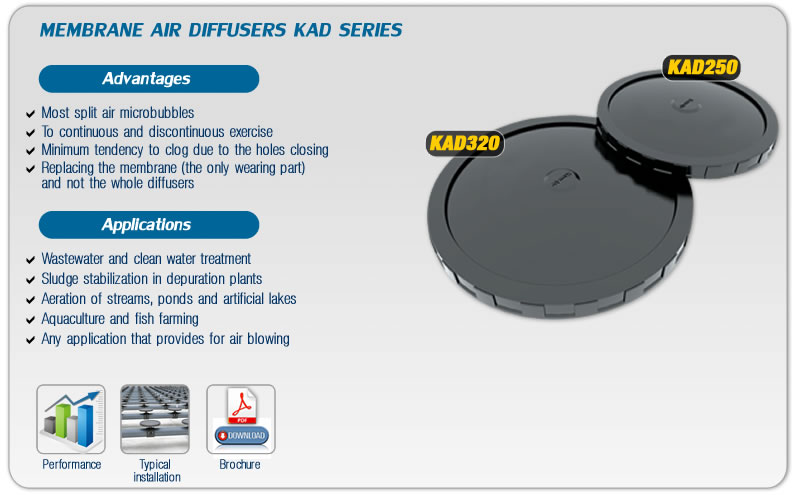

Depur Systems Srl - Fine bubble air diffusers

MODEL	KAD250	KAD320
TECHNICAL FEATURES
Diameter	10" (250mm)	12,5" (320mm)

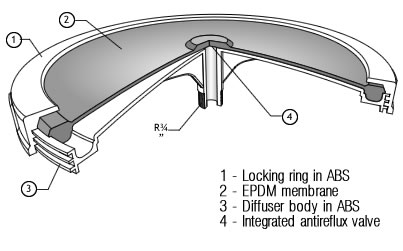

Body of diffuser	ABS	ABS
Membrane type	Membrane with precision holes in high quality EPDM Hardness 60 ± 5 °	Membrane with precision holes in high quality EPDM Hardness 60 ± 5 °
Bubbles diameters	1-3mm	1-3mm
Number of holes	6600	8800
Connections	R¾"	R¾"
Air flow	1,699 ÷ 4,24 cbm/h	3,05 ÷ 5,94 cbm/h
Operating temperatrure	0 ~ +100°C	0 ~ +100°C
Effective area of diffusion	1,67m	2,69m

ACCESSORIES

Together with KAD series diffusers, Depur SYSTEMS SRL makes available, on request, a wide range of accessories to facilitate the construction of large oxidation ponds (for example municipal plants) where there is a need to assemble a vast net of diffusers in a simple and at the same time ensuring a high quality work.

Depending on the requirements and the type of realization, it is possible to request joints gripping bracket of diff-
erent diameter, or saddle fittings PVC. Both types of attachment to ensure the safety and efficiency of the diffuser

Collar brackets made in stainless steel AISI 304are height adjustable and provide anchorage to the ground and the tightness of the pipes They are available in two versions for the diameters and ø110 ø160 complete with anchor in stainless steel AISI 316. Other diameters are available on request.

Elastic joints in EPDM with central reinforcement in stainless steel to minimize the stresses on the pipes
