Depur Systems Srl - UV sterilizer

Technical data	UV110	UV165	UV220	UV275	UV330	UV385	UV440

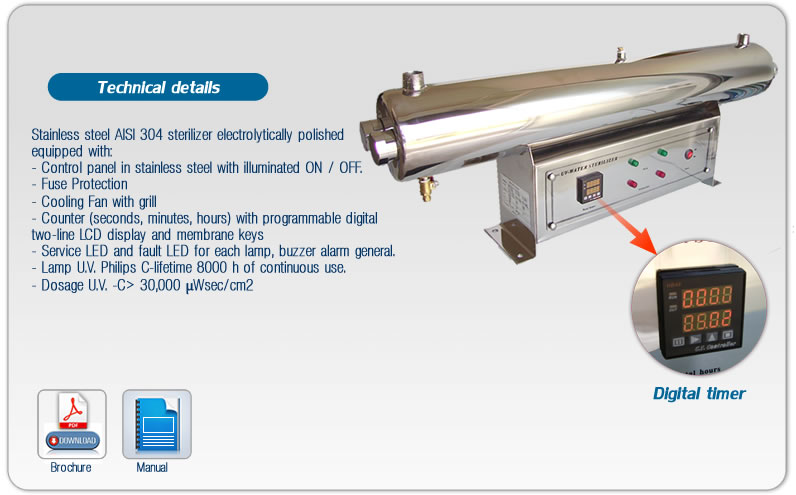

HIGH FLOW U.V. STERILIZERS
U.V. DOSAGE	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2
BODY MATERIAL	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
VOLTAGE	220V - 240V	220V - 240V	220V - 240V	220V - 240V	220V - 240V	220V - 240V	220V - 240V
LAMP LIFE	8000h	8000h	8000h	8000h	8000h	8000h	8000h
MALFUNCTION INDICATOR LAMP	LED + ALLARME	LED + ALLARME	LED + ALLARME	LED + ALLARME	LED + ALLARME	LED + ALLARME	LED + ALLARME
COUNTER	SI	SI	SI	SI	SI	SI	SI
IN/OUT CONNECTIONS	1"	1"½	1"½	2"	2"	2"½	3"
MAX FLOW *	5500l/h	9000l/h	12000l/h	15000l/h	20000l/h	25000l/h	30000l/h
* Values considered for primary microfiltered water

TECHNICAL DATA	UV4	UV6	UV11	UV16	UV30	UV55

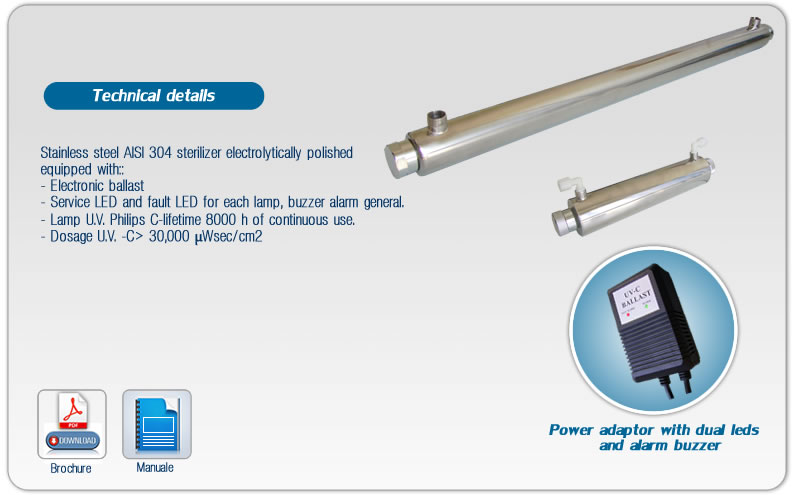

LOW FLOW U.V. STERILIZERS
U.V. DOSAGE	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2	>30000 μ W-sec/cm2
BODY MATERIAL	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
VOLTAGE	220V - 240V	220V - 240V	220V - 240V	220V - 240V	220V - 240V	220V - 240V
LAMP LIFE	8000h	8000h	8000h	8000h	8000h	8000h
MALFUNCTION INDICATOR LAMP	LED + ALLARM	LED + ALLARM	LED + ALLARM	LED + ALLARM	LED + ALLARM	LED + ALLARM
COUNTER	SI	SI	SI	SI	SI	SI
IN/OUT CONNECTIONS	1/4"	1/4"	1/4"	1/4"	1/2"	3/4"
MAX FLOW *	80l/h	150l/h	300l/h	600l/h	1500l/h	3000l/h
* Values considered for primary water microfiltered

U.V. STERILIZERS
