MEDIUM FLOW INDUSTRIAL WATER SOFTENERS

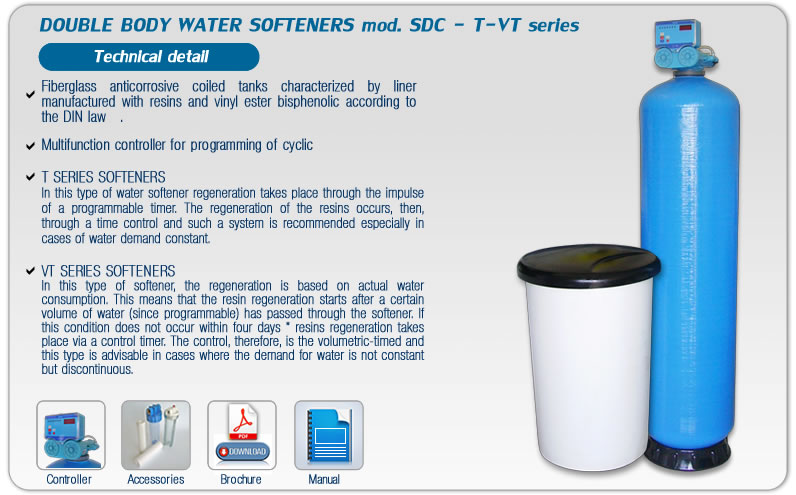

The industrial water softeners Depur SYSTEMS are equipped with a mixer of hardness and a device for the electrolytic disinfection of the resins during regeneration with brine. In addition, to meet the different needs or applications you can choose between the "T" and the "VT" series.
| MEDIUM FLOW INDUSTRIAL WATER SOFTENERS | ||||||||||
| Model | Resin (lt) |
Tank | Vat capacity (lt) |
Dimensions (mm) | Max capacity of cyclic exch. (cbm x °f) |
Max consumption of salt per regener. (Kg) |
Max flow of istant. exchange (cbm/h) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| tank | vat | |||||||||
| diameter | height | diameter | height | |||||||
| SDC110 | 110 | 14"x65" | 190 | 363 | 1854 | 450 | 1080 | 660 | 19,8 | 4,4 |
| SDC140 | 140 | 16"x65" | 190 | 413 | 1851 | 450 | 1080 | 840 | 25,2 | 5,6 |
| SDC180 | 180 | 18"x65" | 340 | 413 | 1851 | 635 | 1150 | 1080 | 32,4 | 7,2 |
| SDC250 | 250 | 21"x62" | 460 | 550 | 2064 | 742 | 1150 | 1320 | 39,6 | 8,8 |
| SDC320 | 320 | 24"x62" | 460 | 626 | 2168 | 742 | 1150 | 1920 | 57,6 | 12,8 |
| SDC480 | 480 | 30"x72" | 670 | 780 | 2140 | 885 | 1150 | 2880 | 86,4 | 19,2 |
| SDC700 | 700 | 36"x72" | 920 | 938 | 2147 | 1035 | 1150 | 4200 | 126 | 28 |
