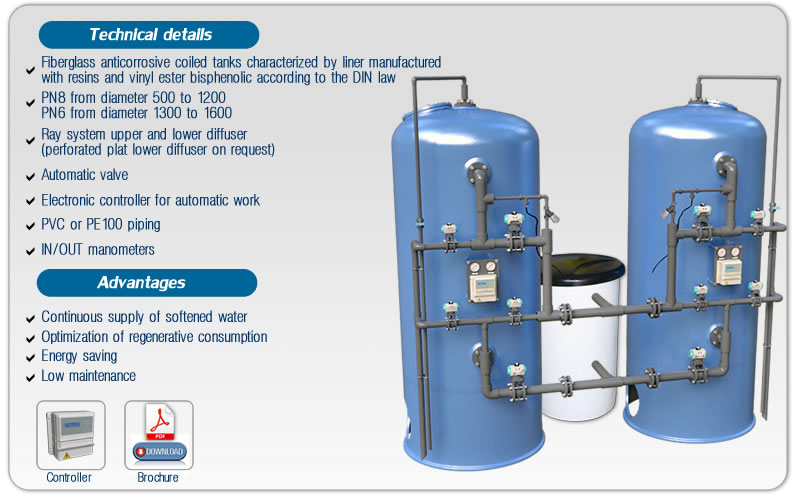

postheadericon DUPLEX INDUSTRIAL WATER SOFTENERS

The DUPLEX SOFTENERS are distinguished from other models because they provide consistently during the 24 hours, softened water, even during the phases of regeneration of the resins. Two separate columns retain, through a bed of ion exchange resins, calcium and magnesium, which are the cause of fouling. A meter of water, included in the automatic control system, allows the regeneration of the column when it is exhausted, by entering, contextually, in service the cylinder which will mate to provide softened water to the services. The alternation therefore, allows a constant supply of softened water and without interruption to the minimum operating cost.

sfoglia brochure



DUPLEX HIGH FLOW INDUSTRIAL WATER SOFTENERS
Model Resin
(lt)		 Vat
capacity
(lt)		 Dimensions (mm) max capacity of
cyclic exch.
(cbm x °f)		 Max consump. of
salt per regener.
(Kg)		 Max flow of
istant. exch.
(cbm/h)
tank vat
diameter height diameter height
DLT300 300 670 500 2890 885 1150 3600 108 24
DLT450 450 670 600 2890 885 1150 5400 162 38
DLT600 600 920 700 2890 1035 1150 7200 216 48
DLT750 750 920 800 2850 1035 1150 9000 270 60
DLT900 900 1100 900 2850 1100 1640 10800 324 72
DLT1100 1100 1500 1000 2850 1400 1300 13200 396 88
DLT1600 1600 2000 1200 2850 1600 1500 19200 576 128
DLT1900 1900 3000 1300 2850 1750 1600 22800 684 152
DLT2200 2000 3000 1400 2850 1750 1600 26400 792 176
DLT2600 2600 5000 1500 2850 1950 2100 31200 936 208
DLT3000 3000 5000 1600 2850 1950 2100 36000 1080 240





MEDIUM FLOW DUPLEX INDUSTRIAL WATER SOFTENERS
Model Resin
(lt)		 Tank type vat capacity

(lt)		 Dimensions (mm) Max capacity of
cyclic exch.
(cbm x °f)		 Max consump. of
salt per regener.
(Kg)		 Max flow of
istant. exch.
(cbm/h)
tank vat
diameter height diameter height
DSDC110 110 14"x65" 190 363 1854 450 1080 1320 39,6 8,8
DSDC140 140 16"x65" 190 413 1851 450 1080 1680 50,4 11,2
DSDC180 180 18"x65" 340 416 1851 635 1150 2160 64,8 14,4
DSDC250 250 21"x62" 460 550 2064 742 1150 2640 79,2 17,6
DSDC320 320 24"x72" 460 626 2168 742 1150 3840 115,2 25,6
DSDC480 480 30"x72" 670 780 2140 885 1150 5600 172,8 38,4
DSDC700 700 36"x72" 920 938 2147 1035 1150 8400 252 56





SMALL FLOW DUPLEX INDUSTRIAL WATER SOFTENERS
Model Resin
(lt)		 Tank type Vat
capacity
(lt)		 Dimensions (mm) Max capacity of
cyclic exch.
(cbm x °f)		 Max consump. of
salt per regener.
(Kg)		 Max flow of
istant. exch.
(mc/h)
Tank Vat
diameter height diameter height
DLDC35 35 10"x44" 85 264 1306 380 790 420 12,6 2,8
DLDC45 45 10"x54" 85 264 1566 380 790 540 16,2 3,6
DLDC55 55 12"x48" 85 311 1412 380 790 660 19,8 4,4
DLDC65 65 12"x52" 85 311 1518 380 790 780 23,4 5,2
DLDC75 75 12"x54" 140 335 1573 450 800 900 27 6,0
DLDC85 85 14"x52" 140 363 1524 450 800 1020 30,6 6,8
