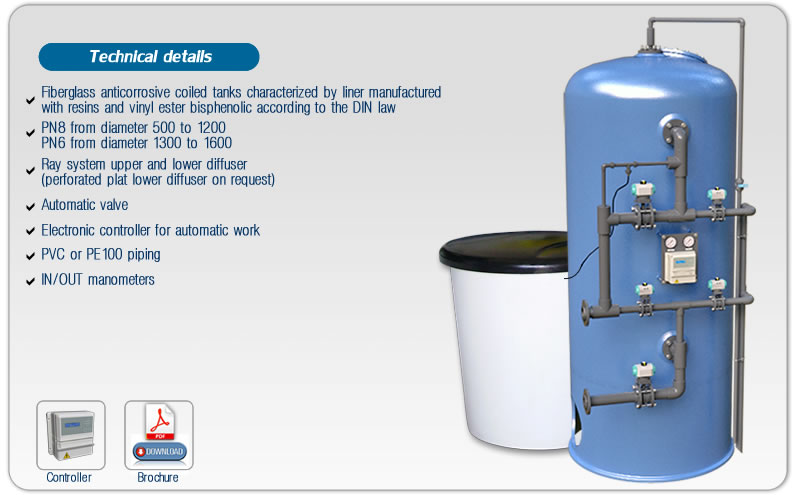

The softener is a permanent solution to the problem of limestone (scale), for damage to water systems, taps, boilers and, in general, to all circuits and systems for hot water or steam. It consists of:
- One or more containers for the exchange resins which hold the ions of calcium and magnesium, thereby avoiding their deposit as carbonate;
- One or more containers for the preparation of the brine, which is necessary for the periodic regeneration of the resins;
- One or more groups of valves which, driven by an electronic control unit, allow for the cyclic regeneration is necessary to keep the equipment in efficient operation
- One or more containers for the exchange resins which hold the ions of calcium and magnesium, thereby avoiding their deposit as carbonate;
- One or more containers for the preparation of the brine, which is necessary for the periodic regeneration of the resins;
- One or more groups of valves which, driven by an electronic control unit, allow for the cyclic regeneration is necessary to keep the equipment in efficient operation
HIGH FLOW INDUSTRIAL WATER SOFTENERS | |||||||||
Model | Resin (lt) |
Vat capacity (lt) |
Dimensions (mm) | Max capacity of cyclic exchange (cbm x °f) |
Max consumpt. of salt for regeneration (Kg) |
Max flow of istant. exchange (cbm/h) |
|||
---|---|---|---|---|---|---|---|---|---|
Tank | Vat | ||||||||
diameter | height | diameter | height | ||||||
LT300 | 300 | 670 | 500 | 2890 | 885 | 1150 | 1800 | 54 | 12 |
LT450 | 450 | 670 | 600 | 2890 | 885 | 1150 | 2700 | 81 | 18 |
LT600 | 600 | 920 | 700 | 2890 | 1035 | 1150 | 3600 | 108 | 24 |
LT750 | 750 | 920 | 800 | 2850 | 1035 | 1150 | 4500 | 135 | 30 |
LT900 | 900 | 1100 | 900 | 2850 | 1100 | 1640 | 5400 | 162 | 36 |
LT1100 | 1100 | 1500 | 1000 | 2850 | 1400 | 1300 | 6600 | 198 | 44 |
LT1600 | 1600 | 2000 | 1200 | 2850 | 1600 | 1500 | 9600 | 288 | 64 |
LT1900 | 1900 | 3000 | 1300 | 2850 | 1750 | 1600 | 11400 | 342 | 76 |
LT2200 | 2200 | 3000 | 1400 | 2850 | 1750 | 1600 | 13200 | 396 | 88 |
LT2600 | 2600 | 5000 | 1500 | 2850 | 1950 | 2100 | 15600 | 468 | 104 |
LT3000 | 3000 | 5000 | 1600 | 2850 | 1950 | 2100 | 18000 | 540 | 120 |
