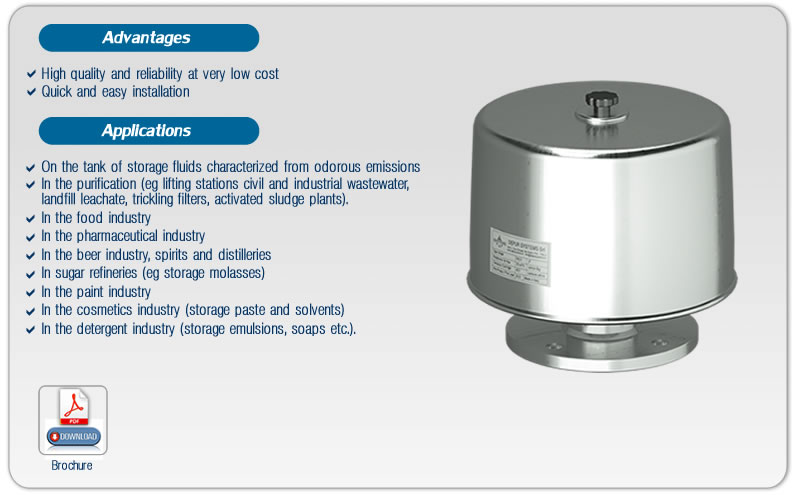

Thanks to the over ten years experience gained in the air treatment, the Depur Systems has developed an active carbon filter for the control of odor emissions originated in the lifting stations and wastewater in the tanks (tank) of storage of some wastewater requiring an odor abatement during during loading and unloading. These filters are equipped with a filter cartridge containing granular activated carbon, suitably supported by a layer of synthetic fabric and a metal mesh. The vapors (emissions) that originate during the handling of the fluid inside the tank (loading or unloading) are adsorbed by the filter which allows the control of air flow in both directions. In sewage lifting stations or units of biological treatment, monitor emissions into the environment unpleasant.

sfoglia brochure



Model Max air flow
(Nm3/h)
DN
Flange
Activated carbon cartridge
Load quantity
(kg)
Dimensions (mm)
D H
FAC1 70 3" AC1 5 280 180
FAC2 140 4" AC2 8 410 330
FAC3 180 5" AC2 9,5 410 330
Model Max air flow
(Nm3/h)
DN
Pipe
Activated carbon cartridge
Load quantity
(kg)
Dimensions (mm)
D H
FAC4 70 3" AC1 5 280 180
FAC5 140 4" AC2 8 410 330
FAC6 180 5" AC2 9,5 410 330
